| Model |

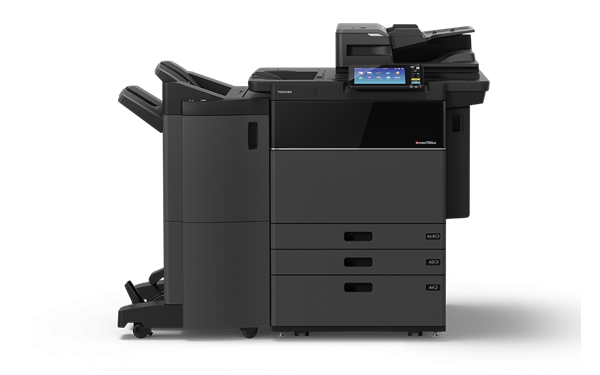

e-STUDIO7516AC |
| General Feature |
| Control Panel |
10.1” Colour WVGA Touch Screen Tilting Display |
| Dimensions & Weight |
955 x 698 x 1,227 mm (W x D x H), 213 kg |
| Paper Size & Weight |
Cassettes: A5R-320 x 460 mm, 60-256 gsm. Tandem LCF*: A4, 60-256 gsm. Bypass: 100 x 148 mm-330 x 483 mm, 60-300 gsm, banner paper (up to 313.4 x 1,200 mm, 90-163 gsm) |
| Controller Type |
Toshiba e-BRIDGE Next |
| Warm-up Time |
Approx. 15 Seconds from low power mode |
| Paper Capacity |
2 x 540 sheets. (Cassettes) + 1 x 2,320 sheets (Tandem LCF), 1 x 120 sheets (Bypass), 1 x 2500 sheet (optional A4 LCF). Maximum 6,020 sheets |
| Memory |
Toshiba Secure Htd 320 GB**, 4 GB RAM |
| Print Speed |
Colour: 75 ppm (A4), 37 ppm (A3). Monochrome: 85 ppm (A4) 40 ppm (A3) |
| Automatic Duplex |
A5R-320 x 460 mm, 60-256 gsm |
| Interface |
10Base-T/100Base-TX/1000Base-T, High Speed USB 2.0, WLAN*** (IEEE802.11b/g/n), Bluetooth***, Wi-Fi Direct*** |
| Print Feature |
| Resolution |
600 x 600 dpi, 1,200 x 1,200 dpi (2 bit, PostScript driver only), 3,600 x 1,200 dpi with smoothing (PostScript driver only, monochrome) |
| Page Description Languages |
PCL5e, PCL5c, PCL6 (PCL XL), XPS and PostScript 3 compatible |
| Print Functions |
Universal Printer Driver, Driver Templates, Driver plug-ins*, Print from USB, Hold print, Tandem printing |
| Supported Systems |
Windows 10/8/7/Vista/Server 2008 (32/64 bit), Windows Server 2012/Server 2008 R2 (64 bit), Mac OS X 10.6.8-10.11, Linux/Unix, Citrix, Novell NetWare (NDPS), SAP, AS/400 |
| Scan Feature |
| Scan Functions |
WS Scan, Scan to USB, Scan to E-Mail, Scan to File (SMB, FTP, FTPS, IPX/SPX, Local), Meta Scan***, OCR scan***, Scan to Box (e-Filing), WIA, TWAIN |
| Resolution |
600 dpi, 400 dpi, 300 dpi, 200 dpi, 150 dpi, 100 dpi |
| Scan Speed |
up to 240 ipm (300 dpi) in colour and monochrome via Dual Scan Document Feeder |
| Scan Modes |
Auto-Colour (ACS), Colour, Greyscale, Monochrome |
| File Formats |
JPEG, Multi/Single Page TIFF/XPS/PDF, Secure PDF, Slim PDF, PDF/A, PDF/A-2, Searchable PDF*** (and other formats like DOCX, XLSX)*** |
| Fax Feature |
| Transmission Speed |
Approx. 3 seconds per page |
| Incoming Fax Routing |
To shared folders (SMB, FTP, IPX/SPX), E-Mail, e-Filing |
| Communication |
Super G3, G3 – (opt. 2nd line) |
| Network Fax |
Driver for Windows 10/8/7/Vista/Server 2008 (32/64 bit), Server 2012/Server 2008 R2 (64 bit) |
| Compression |
MH/MR/MMR/JBIG |
| Copy Feature |
| Resolution |
Scan: 600 x 600 dpi Print: 600 x 600 dpi, 2,400 x 600 dpi with smoothing |
| Colour Modes |
Auto-Colour (ACS), Full Colour, Twin Colour, Mono Colour, Monochrome |
| First Copy Output Time |
Colour: Approx. 5.4 seconds. Monochrome: Approx. 4.1 seconds |
| Colour Settings |
Hue, Saturation, Colour Balance, RGB adjustment, 5 one-touch modes |
| Zoom |
25-400% (Platen), 25-200% (DSDF) |
| Copy Modes |
Text, Text/Photo, Photo, Printed Image, Map, Image Smoothing |
| Copy Functions |
Electronic Sort, Rotate Sort, ID Card Copy, Edge Erase, 2-in-1 / 4-in-1 mode |
